Description :

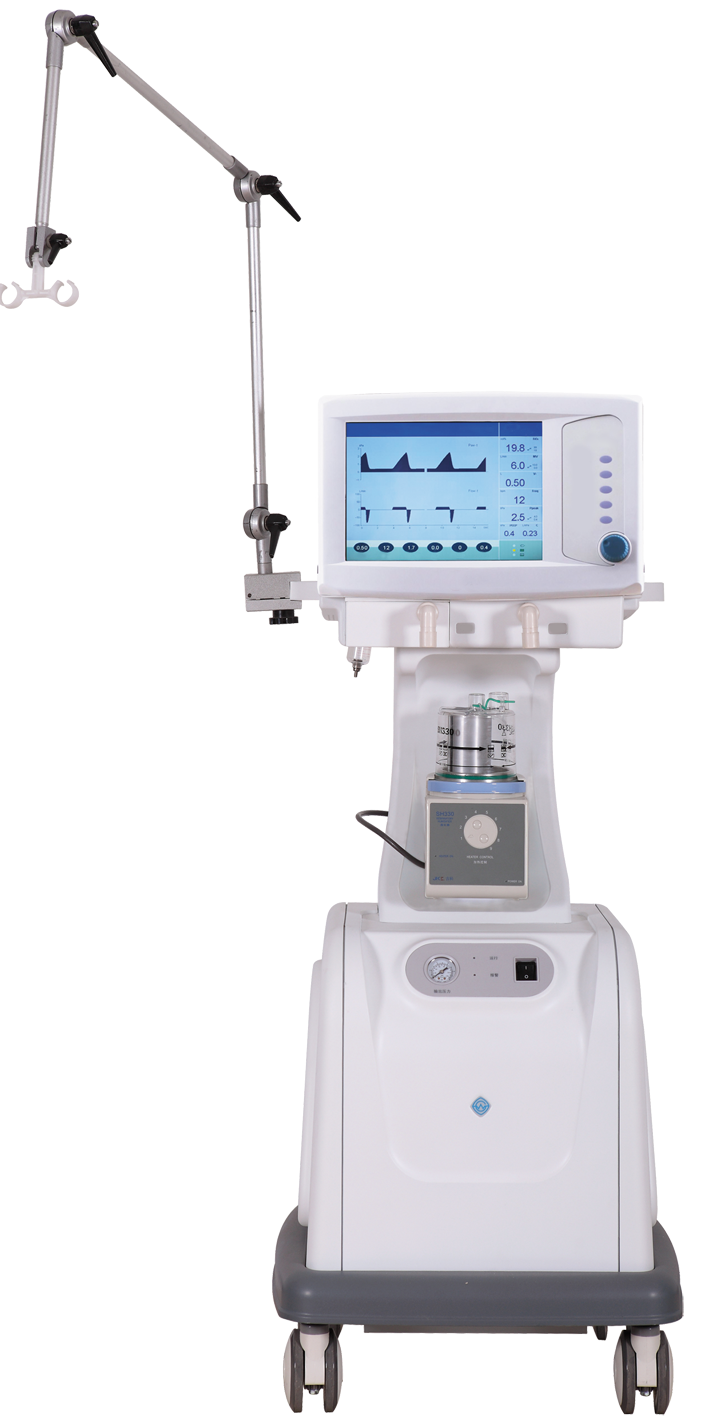

Intensive Care Ventilator KVI- A101 is a respiratory ventilator unit for invasive artificial respiration. Built-in provision for self-testing and calibration. The device is made up of high configuration intelligent control system that allows changes to be made according to user requirements.
Specification
| Tidal Volume |
20 ml ~ 500 ml |
| Standard Ventilation Mode |
VCV, SIMV, PSV, PCV, CPAP, Manual, SIGH |
| Application |
Adult/ Pediatric Invasive |
| Pressure Range |
5 mbar ~ 80 mbar |
| Respiration rate range |
1 bpm ~ 99 bpm 1 bpm ~ 40 bpm under SIMV |
| I:E Ratio |
4:1 to 1:8 |
| Oxygen Concentration |
21 % ~ 100 % |
| Pressure trigger Range |
-20 to 20 cmH2O |
| PEEP Type |
Integrated, Electronic Control |
| PEEP Range |
0 to 30 cmH2O |
| Gas Supply |
O2, Air ( 280 kPa ~ 600 kPa ) |
| Alarm |
Visual : No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, low back up Audio: No tidal volume, MV, Paw, FiO2 limitation |
| Display |
12.1” Color LCD |
| Graphic Display |
Waveforms of P-T, F-T, V-T |
| Operating Temperature |
5 °C ~ 40 °C |
| Storage Temperature |
-10 °C to 40 °C |
| Relative Humidity |
≤ 80 % |
| Atmospheric Pressure |
96 kPa ~ 104 kPa |
| Battery |
Lead acid 12V, 4Ah (120 mins run time) |
| Output Pressure |
0.4 mPa ± 0.1 mPa |
| Noise |
≤ 50 dB |
| Power Supply |
AC 220 V ± 10 %, 50 Hz ± 2 % |
| Dimension |
450 x 550 x 1400 mm |
| Weight |
65 kgs |
Features
- Large screen display for parameter visualization and control
- Desirable display color schemes
- Self-testing and calibration
- Air compressor support (Optional)
Application
Used in operating rooms, surgical care wards, intensive care unit, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
